| ITEM NO |
Core Size(Inch) |
Film Width(Inch) |
Handle |
Features |
| W100 |
2,3 |
12-20 |
Foam |
Aluminium base and cover |
| W110 |
1-1/2,2,3 |
12-20 |
Foam |
Aluminium base and cover |
| W111 |
1-1/2,2,3 |
12-20 |
PVC |
Aluminium base and cover |
| W113 |
3 |
12-20 |
PVC |
Ball bearing between plastic bottom plat & aluminium base to give greater flexibility |
| W202 |
2 |
18 |
|
Aluminium frame. Prestrech the flim |
| W240 |
2 |
17-20 |
PVC |
Steel frame, aluminium bottom and top cover |
| W2405 |
3 |
17-20 |
PVC |
Steel frame, aluminium bottom and top cover |
| W242 |
2 |
16 |
|
Aluminium frame. Prestrech the flim |
| |
|
Auto Strapping Machine |
 DE-200WM |
 |

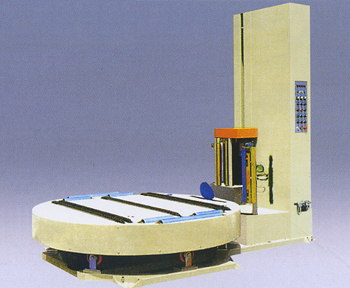

Fully Auto Stretch Wrapping Machine
제품의 진입, 위치제어, 필림의 클램프 랩핑작업 및 제어, 필림의 절단 및 부착 재작업 준비 등 일련의 과정에 전혀 인력이 소요되지 않는 완전 무인 랩핑기 입니다.
It is a full manless packing machine which does not need manpower at all in such process as feeding and positioning control of goods, clamping of film, wrapping, cutting, attaching and preparation for mending operation.
|
|
DIMENSION |
(W)3100, (D)2000, (H)3900W/T 1600kg, Line Pass 650 |
|
PACKAGE SIZE~WEIGHT |
(W)1000-2000. (D)1000-1450,(H)1000-2300 W/T Max. 2,500kg |
|
CAPACITY |
Max. 30 Pallet s/hour |
| FILM CARRIAGE UNIT |
1.3-4.6m/min, inside, Lade Material,Height Perceive Sensor Film Run-outSignal Sensor or Buzzer |
| FILM |
Reel (W)500, Reel Dia(Max. 350),Inner Dia(Max. 762) |
| POWER SUPPLY |
220V, 3 PH, 60 Hz, 3 Kw |
|
| DE-203SW |
| |
 |

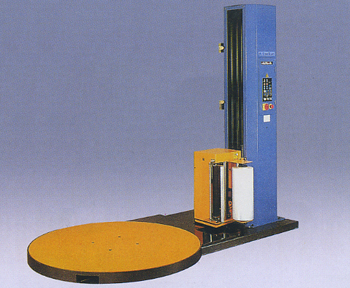

Semi Stretch Wrapping Machine
랩으로 소량 제품을 파렛트화 할 수 있는 랩핑기계로 가격이 저렴하여 경제적입니다.
A most economical wrapping machine with low price. You may select a machine according to the specification of the pallet.
|
|
DIMENSION |
(W)2700, (D)1500, (H)2700
W/T 700kg, Line FL 130 |
|
PACKAGE SIZE~WEIGHT |
(W)1000-1200. (H)800-2000,
(L)1000-1450 W/T Max. 2,000kg |
|
CAPACITY |
Max. 30 Pallet s/hour |
| FILM CARRIAGE UNIT |
1.3-4.6m/min, inside, Lade Material,
Height Perceive Sensor |
| FILM |
Reel (W)500, Reel Dia(Max. 350),Inner Dia(Max. 762) |
| POWER SUPPLY |
220V, 3 PH, 60 Hz, 3 Kw |
|
|
|
 |
